2014 Renault Clio Cup - Front Angle

Renault has announced the new 2014 Renault Clio Cup, which benefits from all the assets of the Clio Renaultsport 200 Turbo EDC.

The 2014 Clio Cup comes with a welded roll cage, monocoque chassis, 17" rims fitted with low-profile performance tires. The front suspension includes Pseudo-McPherson one-way adjustable ZF Race Engineering shock absorber and the rear - One-way adjustable ZF Race Engineering shock absorber with programmed flexible axle/torsion beam.

The power is coming from a 220HP (162 kW) at 6,000 RPM and 270Nm (200 lb-ft) at 2,500 RPM. The engine is connected to a Sadev ST82-17 6-speed sequential gearbox sending the power to a Sadev 23/90 self-locking limited-slip differential at the front wheels.

The curb weight is just 1065 kg (2350 lbs).

The new Clio Cup is manufactured and assembled at the Alpine factory in Dieppe. With its bench-tested and race-sealed engine, the car is delivered ready-to-race.

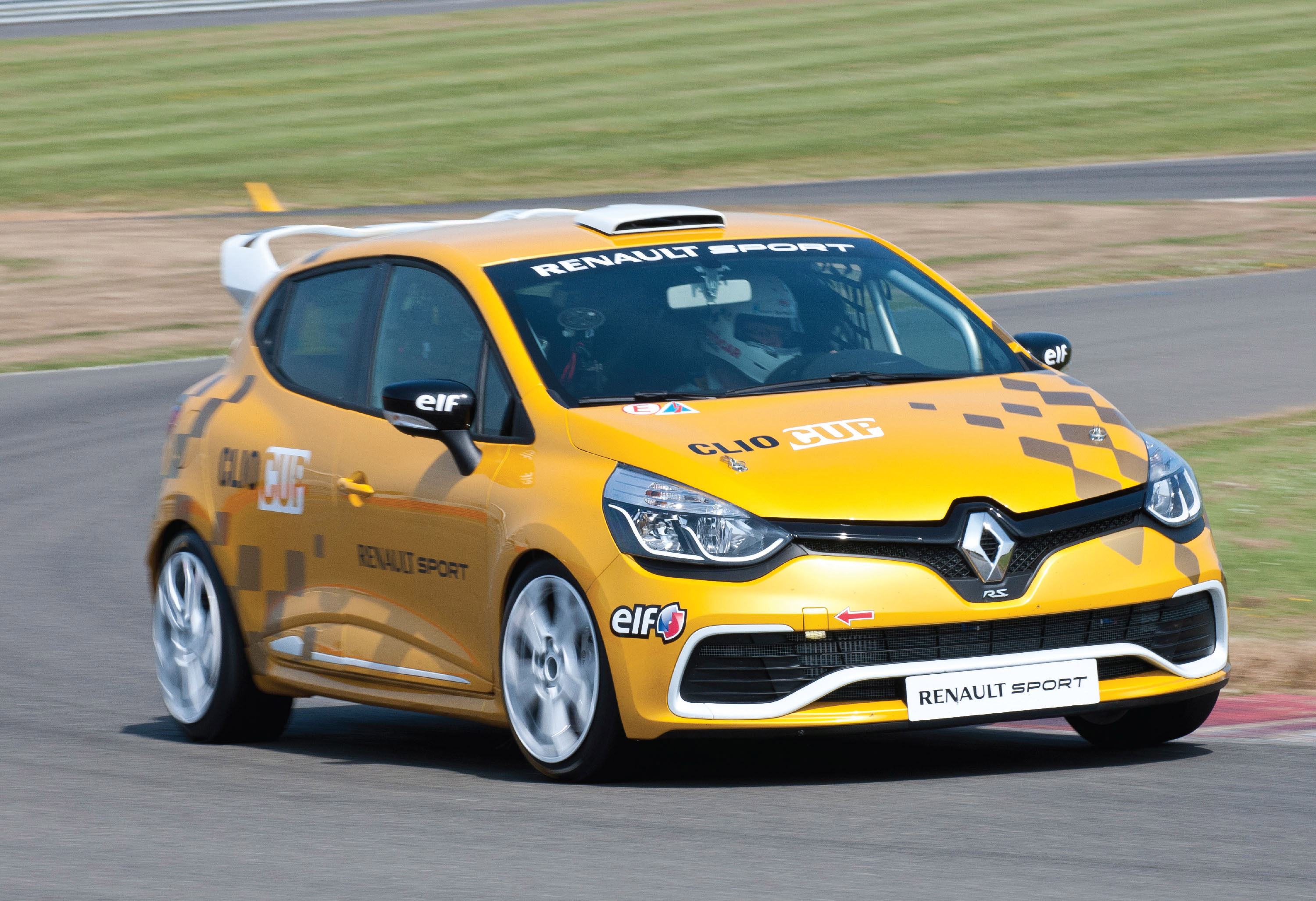

Renault Clio Cup Competition Car (2014) - picture 1 of 4

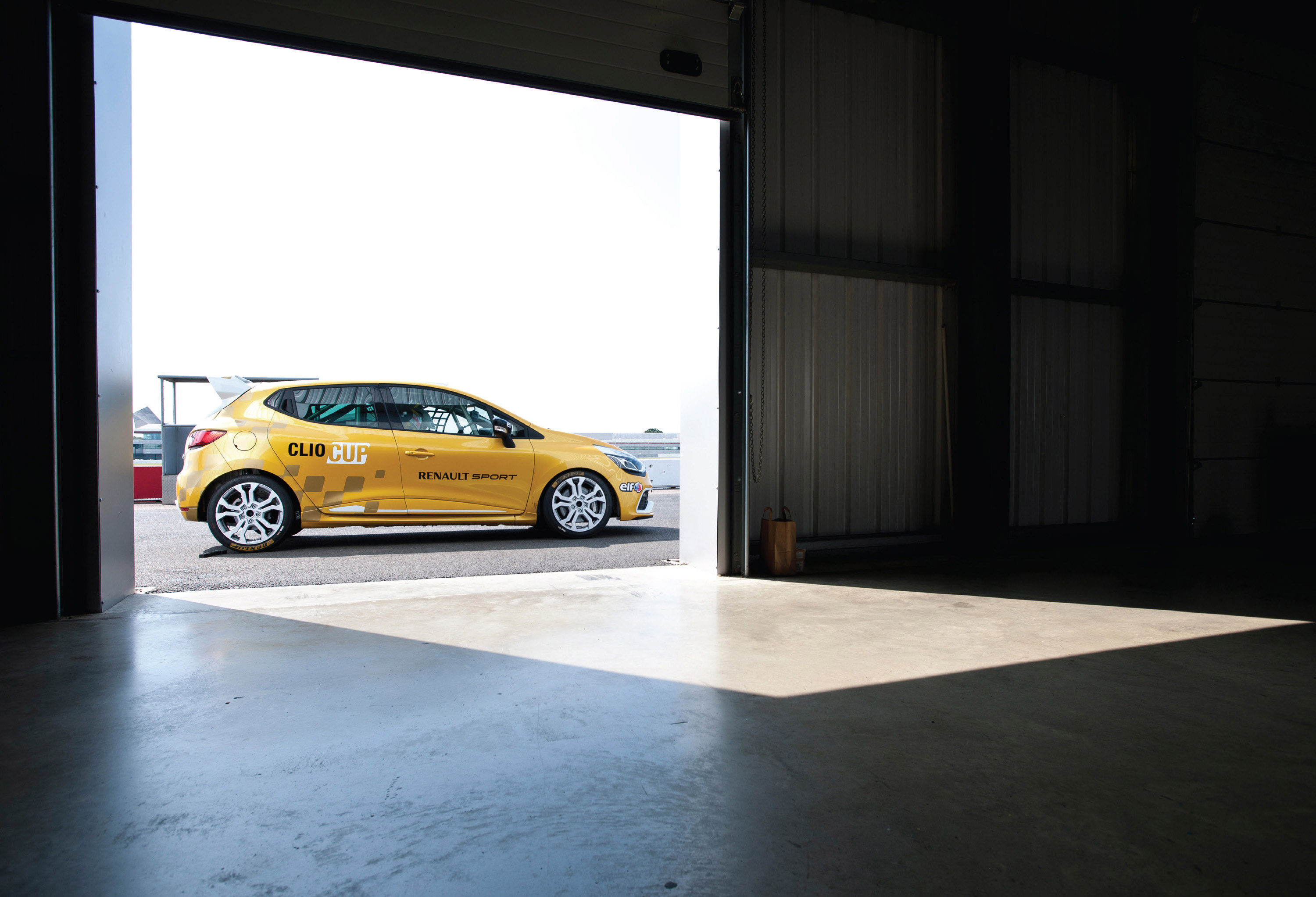

Renault Clio Cup Competition Car (2014) - picture 2 of 4

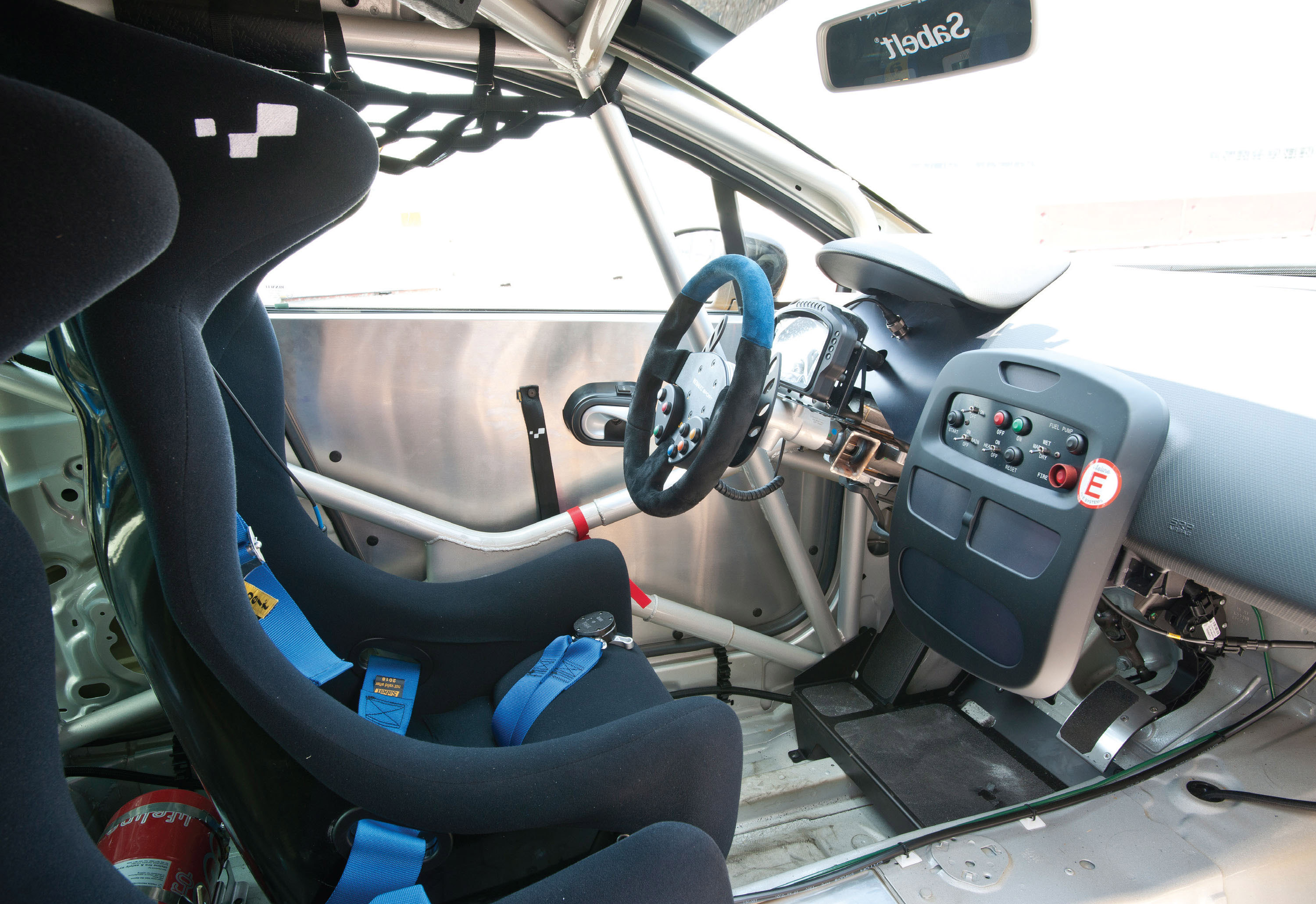

Renault Clio Cup Competition Car (2014) - picture 3 of 4
Renault Clio Cup Competition Car (2014) - picture 4 of 4

TECHNICAL SPECIFICATION

CHASSIS
Type Clio Renaultsport steel bodyshell reinforced by a welded roll cage
Materials Steel
ENGINE
Type Renault M5Mt, 4 cylinder, 16 valve,  1618cc, turbo charged with direct injection
Max power 220 hp at 6000 rpm
Max torque 270 Nm at 2500-5500 rpm
Max engine speed 6500 rpm
Electronics Cosworth SQ7 Di – XAP electric control
TRANSMISSION
Gearbox Sadev ST82-17 six-speed sequential + reverse gear
Controls XAP electric control, semi-automatic steering-wheel mounted
Differential Sadev 23/90 self-locking limited-slip
Clutch AP Racing clutch discs and mechanism – Sadev stop
AXLES AND SUSPENSIONS
Front Pseudo-McPherson one-way adjustable ZF Race Engineering shock absorber
Rear One-way adjustable ZF Race Engineering shock absorber with programmed flexible axle/torsion beam
BRAKES
System AP Racing, two separate master cylinders
Discs AP Racing 320mm vented (front) and 260mm solid (rear)
Calipers Brembo four-piston (front)
WHEELS
Rims Speedline 8x17 aluminium one-piece
Tyres Michelin 20-61x17 or Dunlop 21-62 x17 (UK)
DIMENSIONS, WEIGHT AND CAPACITY
Length / width / height 4090 / 1945 / 1429 mm
Wheel base 2576 mm
Front / rear track 1550 / 1520 mm
Fuel tank 40 litres
Unloaded weight 1065 kg

Source: Renault
