Jeep CJ Surge Concept (2022)
Jeep CJ Surge Concept
Custom designed and engineered to explore an efficient battery-electric propulsion system for classic Jeep models, the Jeep CJ Surge electromod concept allows Mopar designers and engineers to gain a better understanding of potential battery-electric vehicle (BEV) parts kit applications, leading to a future propulsion-system offering for enthusiasts to build or convert classic and current cars and trucks into zero-emission vehicles.

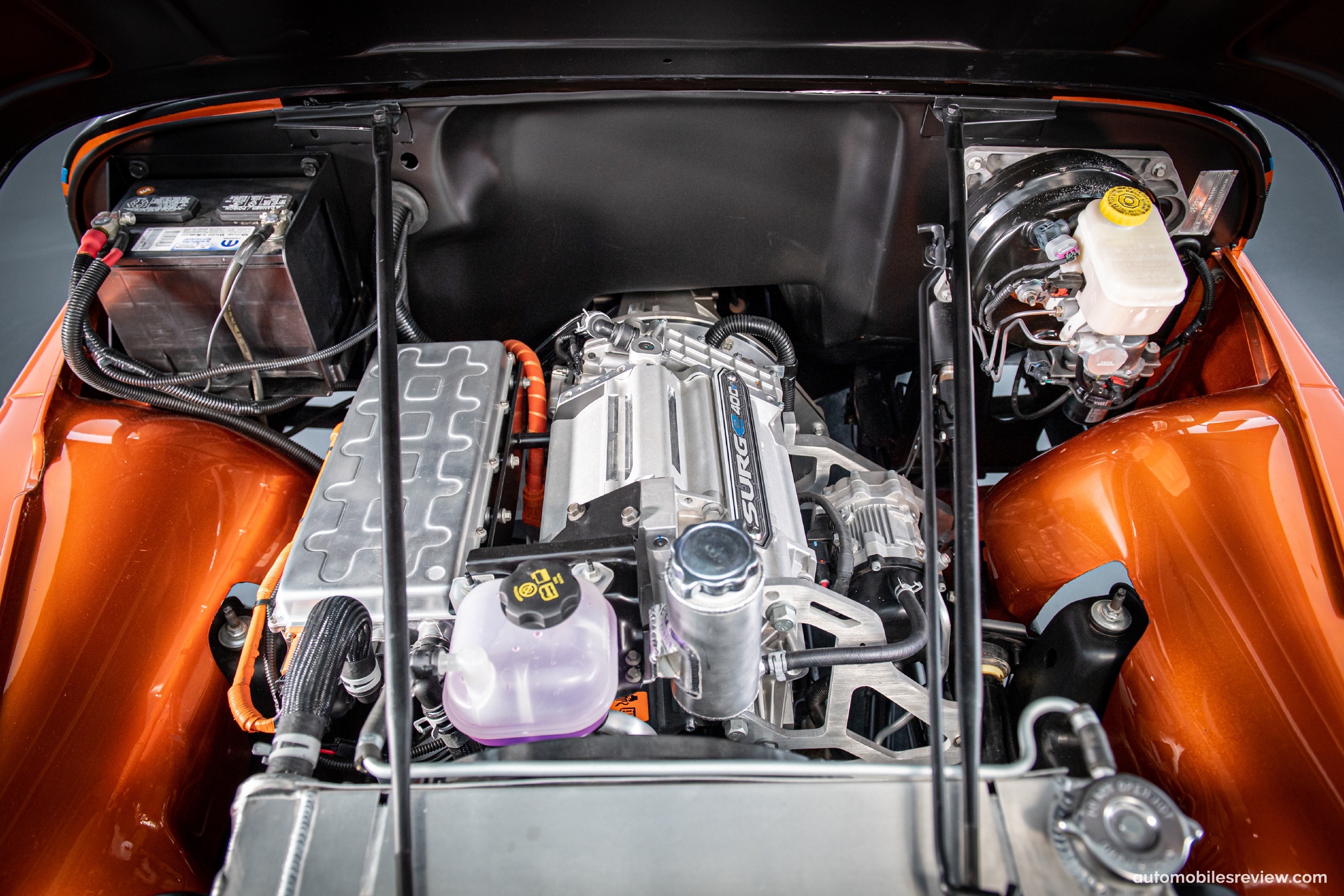

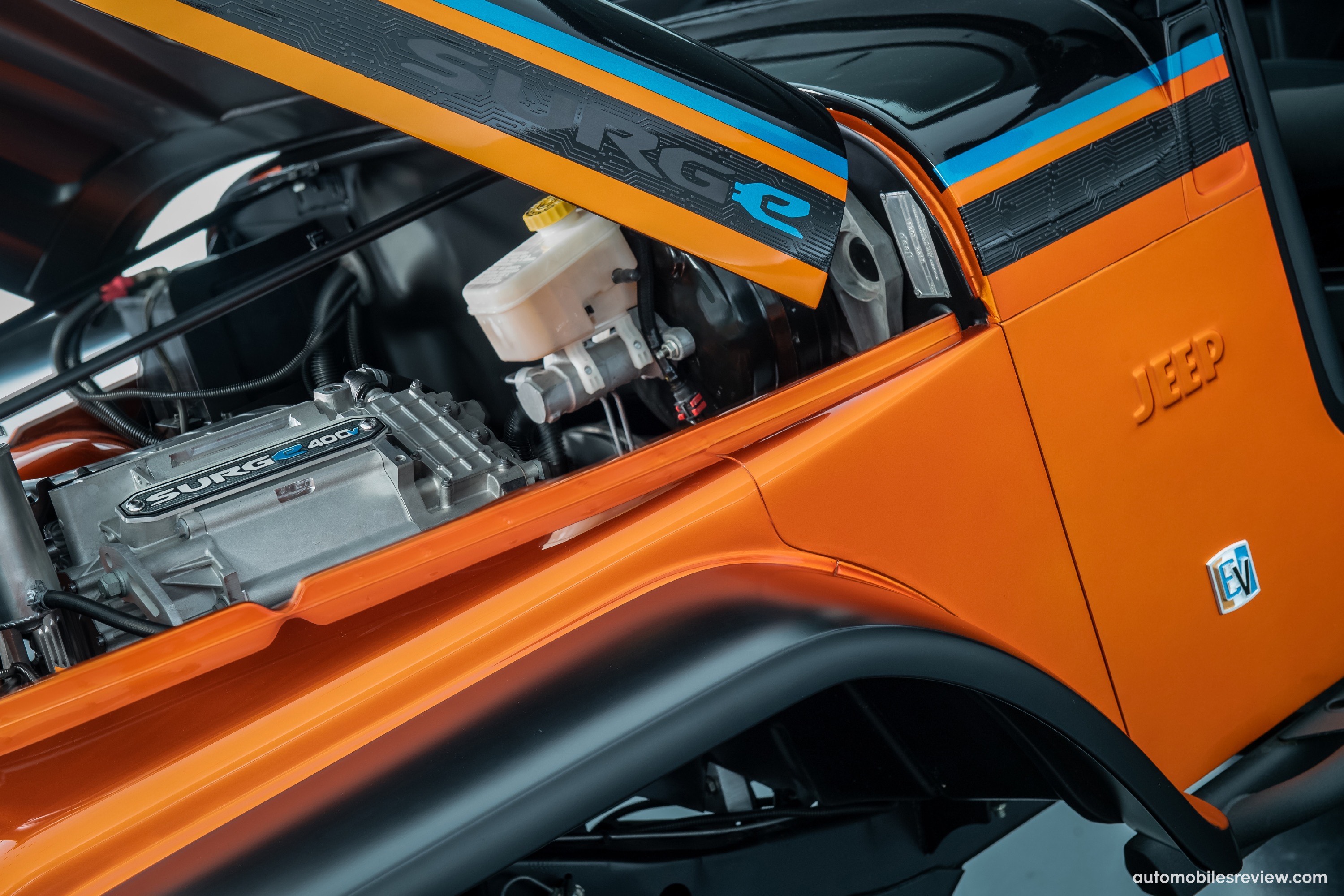

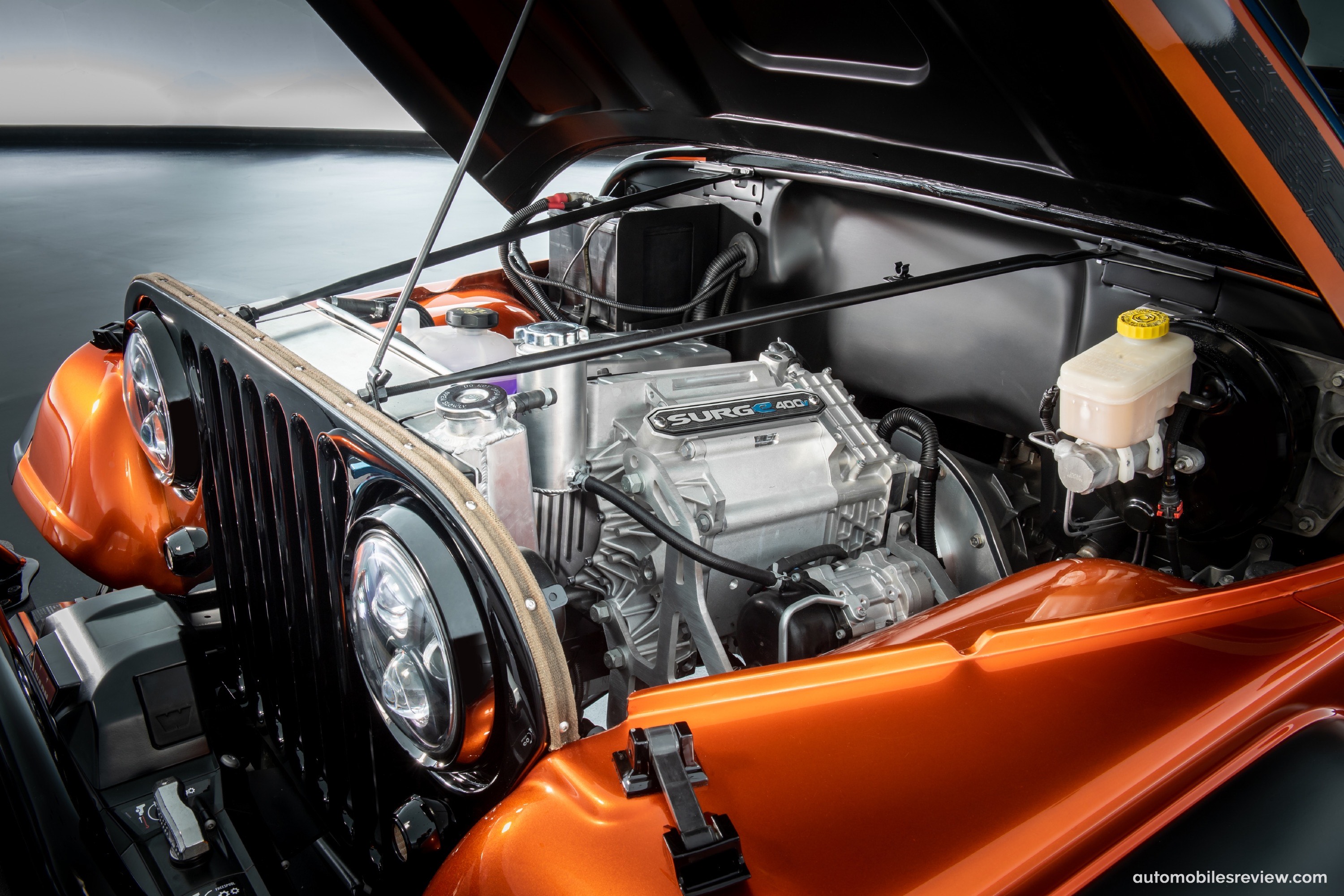

A true Jeep 4x4, the CJ Surge concept is powered by a custom propulsion system. Under the hood, a scalable 400-volt, 200-kW Electric Drive Module mounts to the frame with custom-designed solid motor mounts. Power to all four wheels is supplied by 24 lithium-ion battery modules and torque runs through a two-speed Jeep transfer case with selectable gearing. Battery modules are enclosed in a custom shell mounted in the rear of the passenger cabin.
Riding high on 35-inch BFGoodrich all-terrain tires paired with a 2-inch lift kit, the stunning Copper Canyon body stands out with gloss black and Surf Blue Surge graphics and bodyside striping. The concept hood and bezel are painted gloss black, along with the iconic seven-slot Jeep grille.

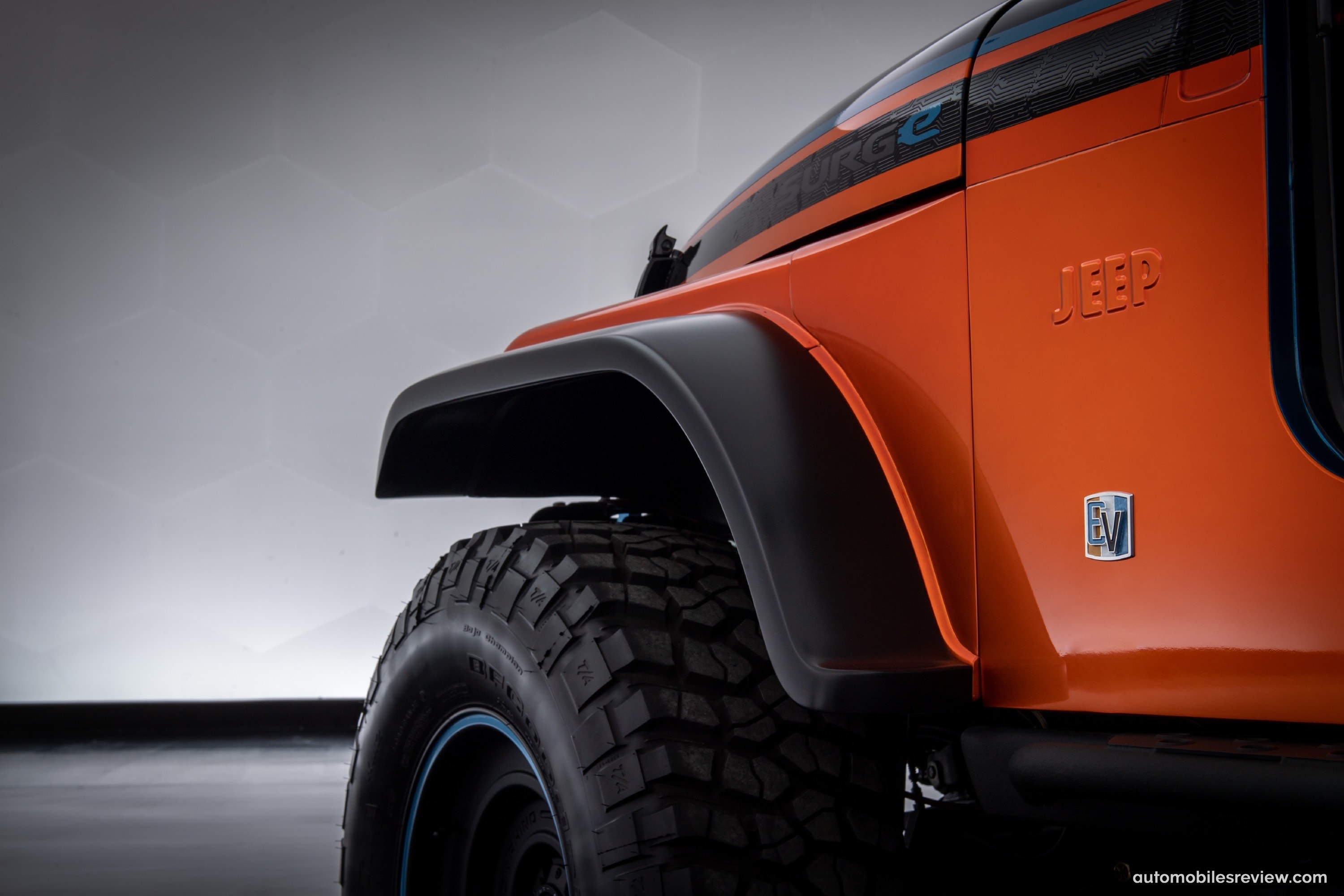

The CJ Surge concept rolls on matte black 18-by-9-inch Black Rhino Solid wheels that carry Surf Blue accents on the rim beads and ride below the oversized concept fender flares. Front and rear Jeep Performance Parts (JPP) Dana 44 Crate axles help the CJ Surge concept easily crawl over rocks and boulders.
A JPP Wrangler JK Rubicon Bumper Kit carries a JPP Rubicon Warn winch up front and is flanked on both sides by Surf Blue tow hooks and amber LED fog lamps. Underbody protection is provided by JPP Rubicon skid and front-bumper plates and concept JPP rock rails. A custom BEV charge port is located just behind the driver-side door opening.

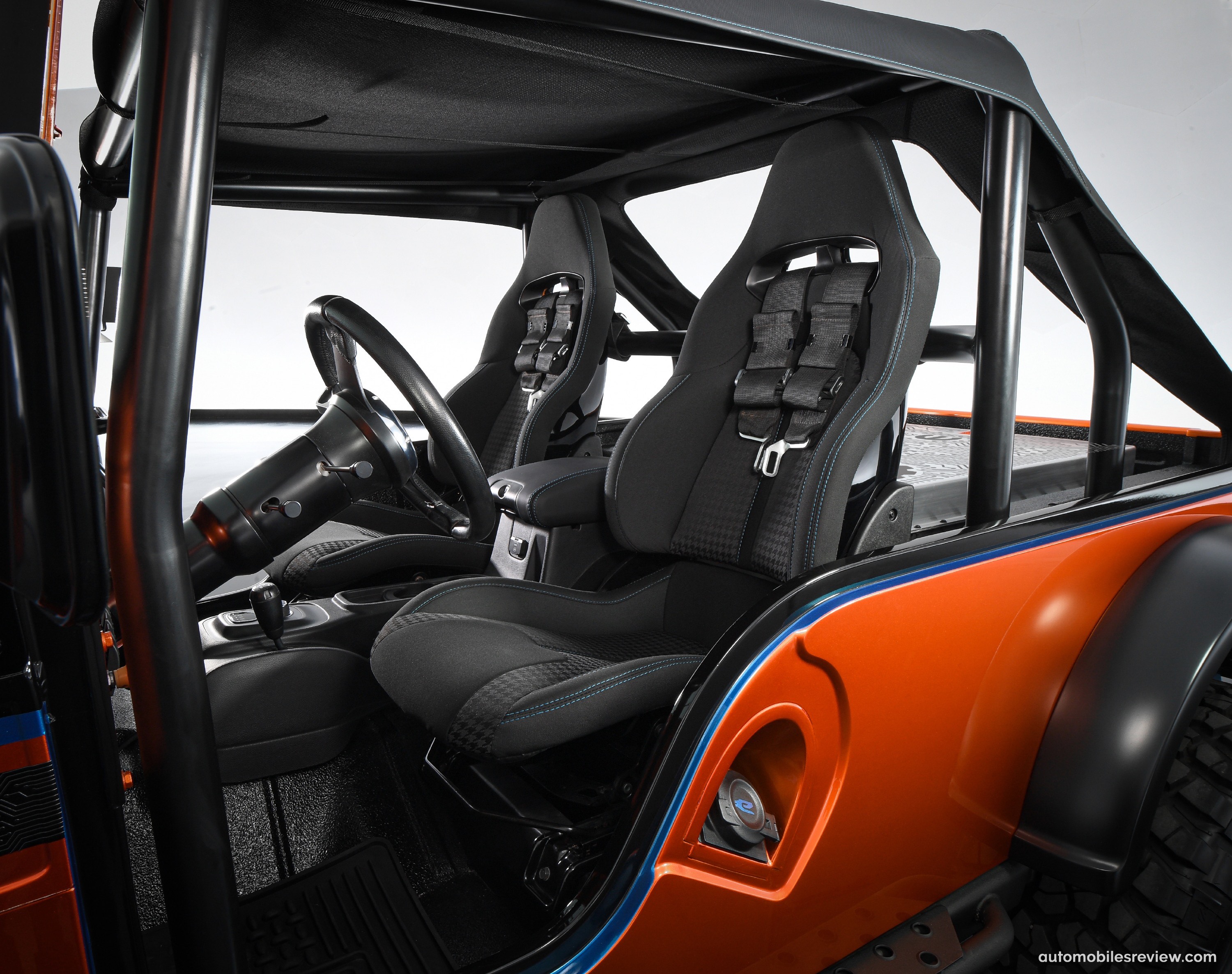

Looking out from the 2-inch cropped windshield, the driver and passenger are perched in custom seats installed with concept seat risers. Both seats feature Surf Blue stitching on the black Sedoso cloth and houndstooth fabric inserts.

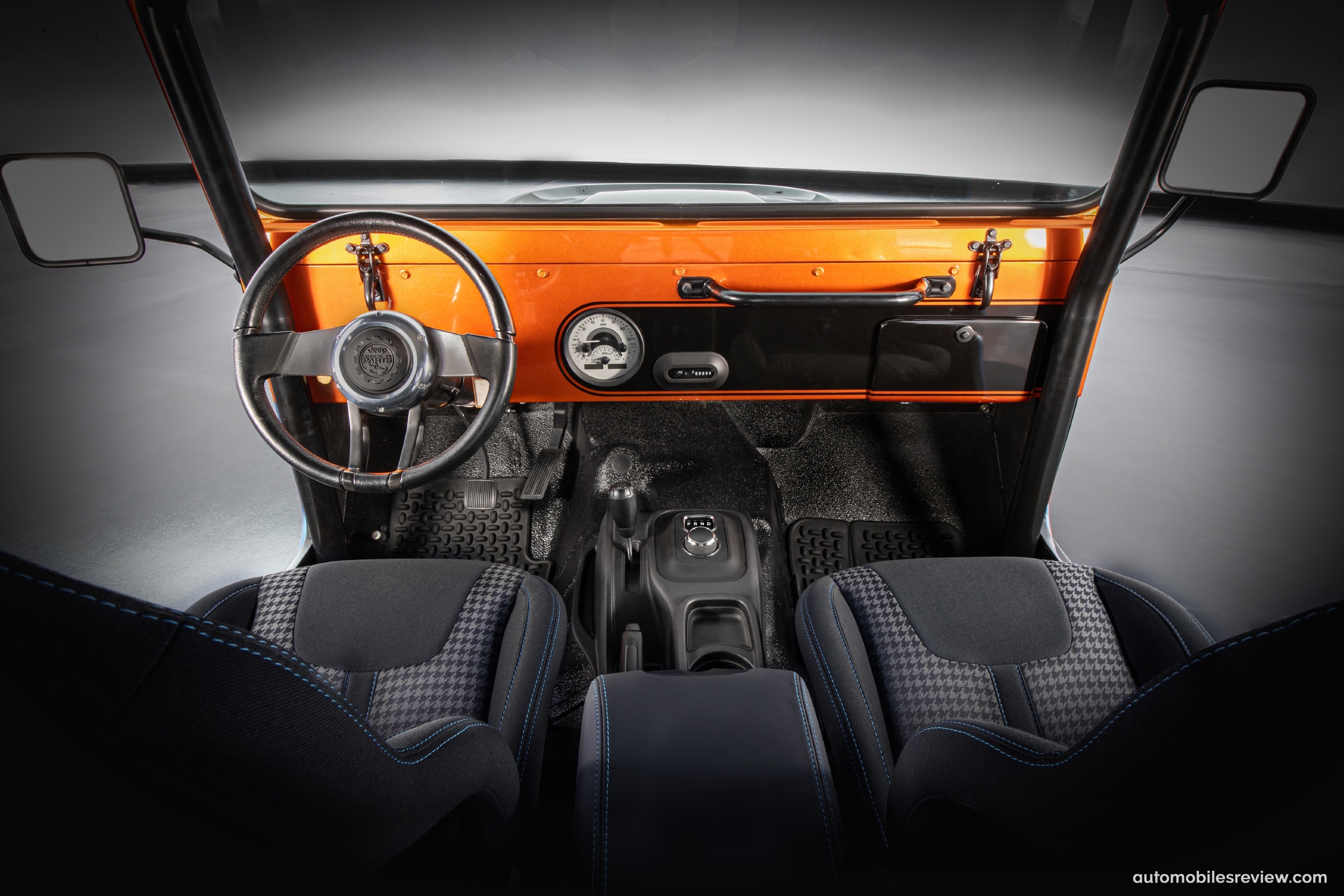

A Wrangler JK center console features a rotary shifter knob, while Mopar instrument-panel gauges include a charge indicator to let the driver know how much battery life remains.

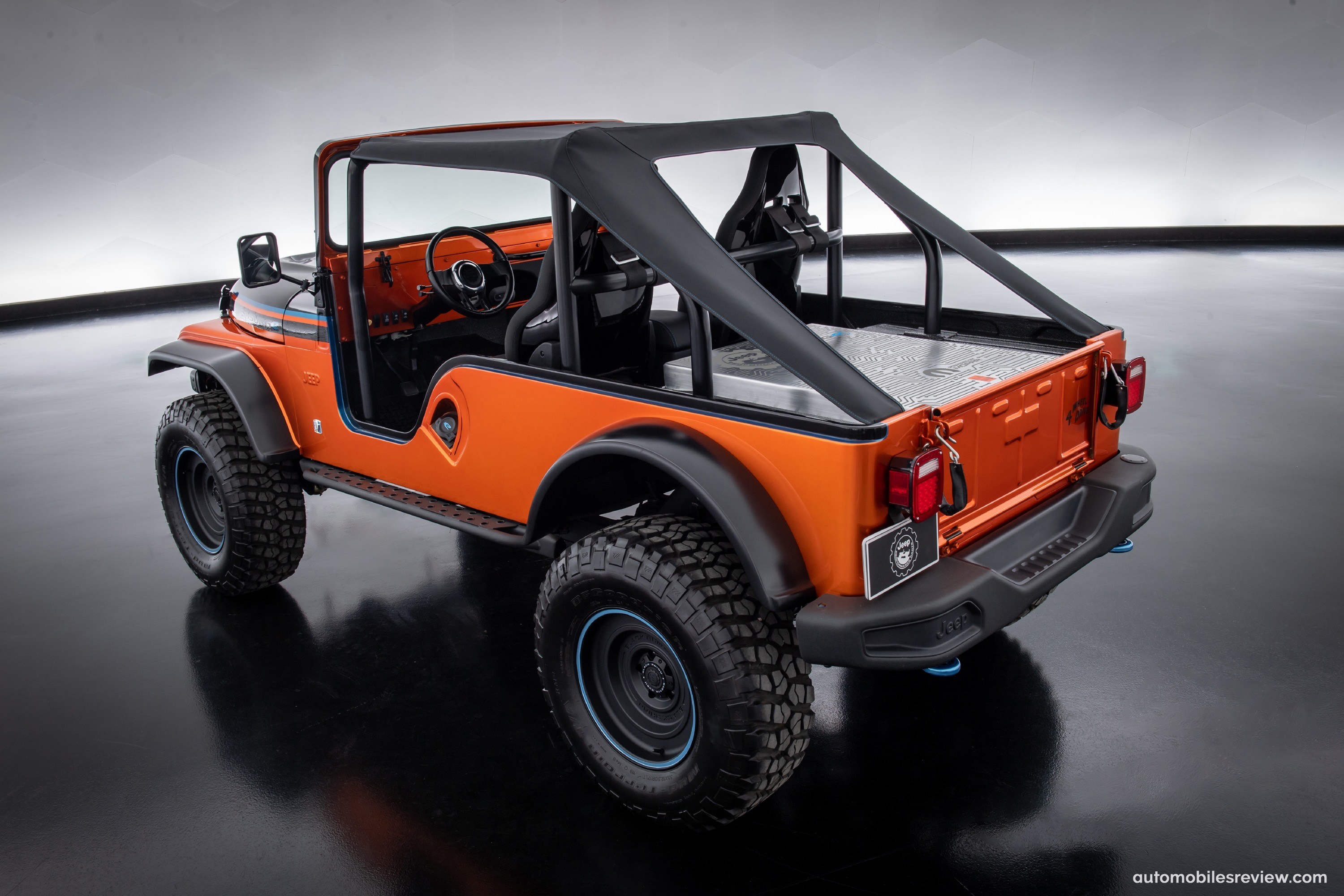

The cockpit of the CJ Surge concept is surrounded by a custom-built roll cage, while a custom-shaped bikini top offers valuable shade and cover from the elements. No JPP concept would be complete without a set of Mopar all-weather floor mats.
To cap off the interior touches, the custom steering wheel is adorned by a unique JPP horn pad badge.
